A Closer Look: Unraveling Tray Packaging Operations in Food Manufacturing

It may seem straightforward: processing food, packaging it, and shipping it to retailers. But there is of course more to it than that. Automated tray packaging lines have several subtasks embedded to ensure high efficiency, flexibility, and operational uptime. Here, we will dive deeper into the inner workings of packaging operations.

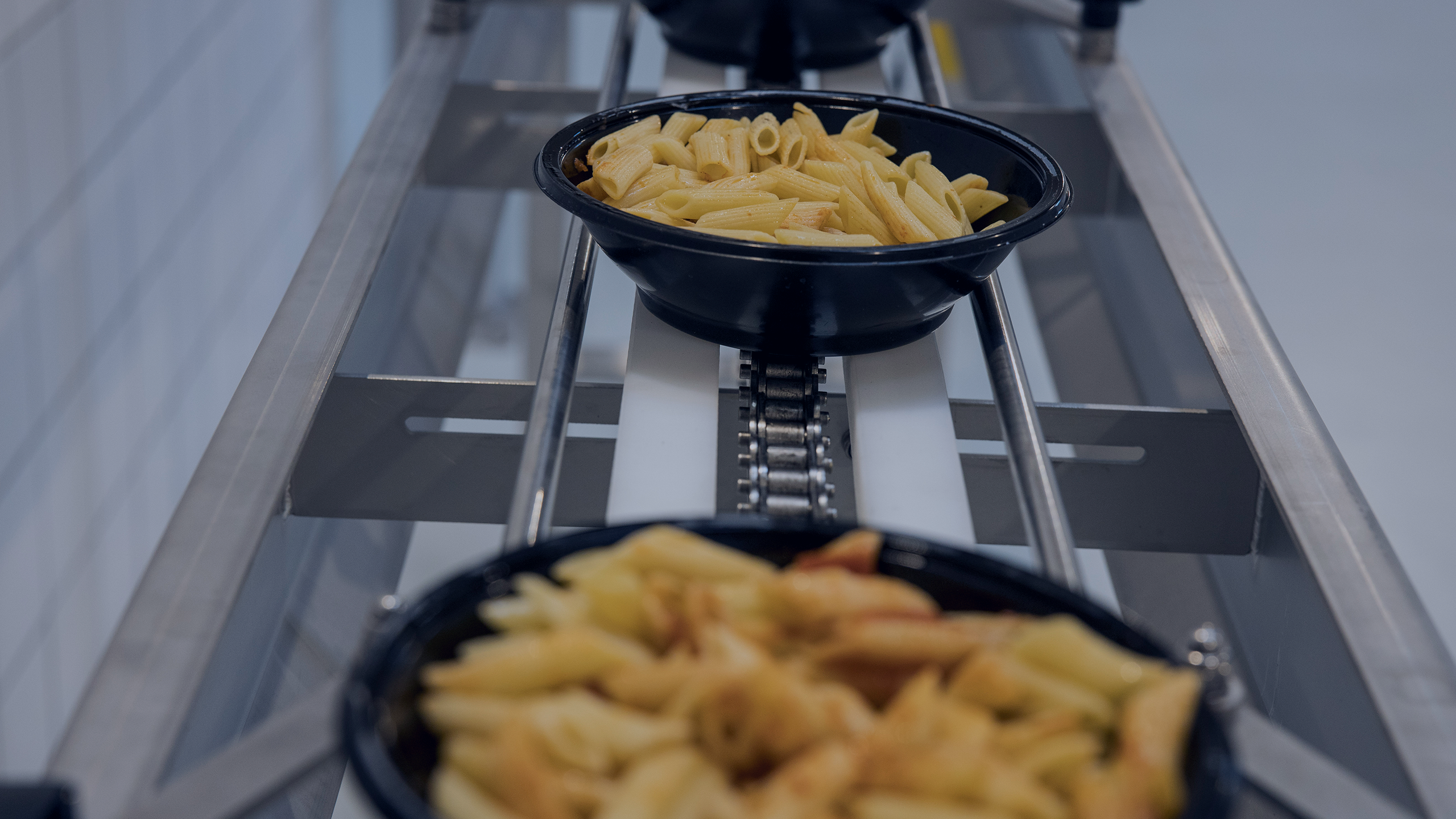

Assume that the food – whatever the product is – has been processed and is outputted on a conveyor line. These lines can, of course, have different configurations depending on the product.

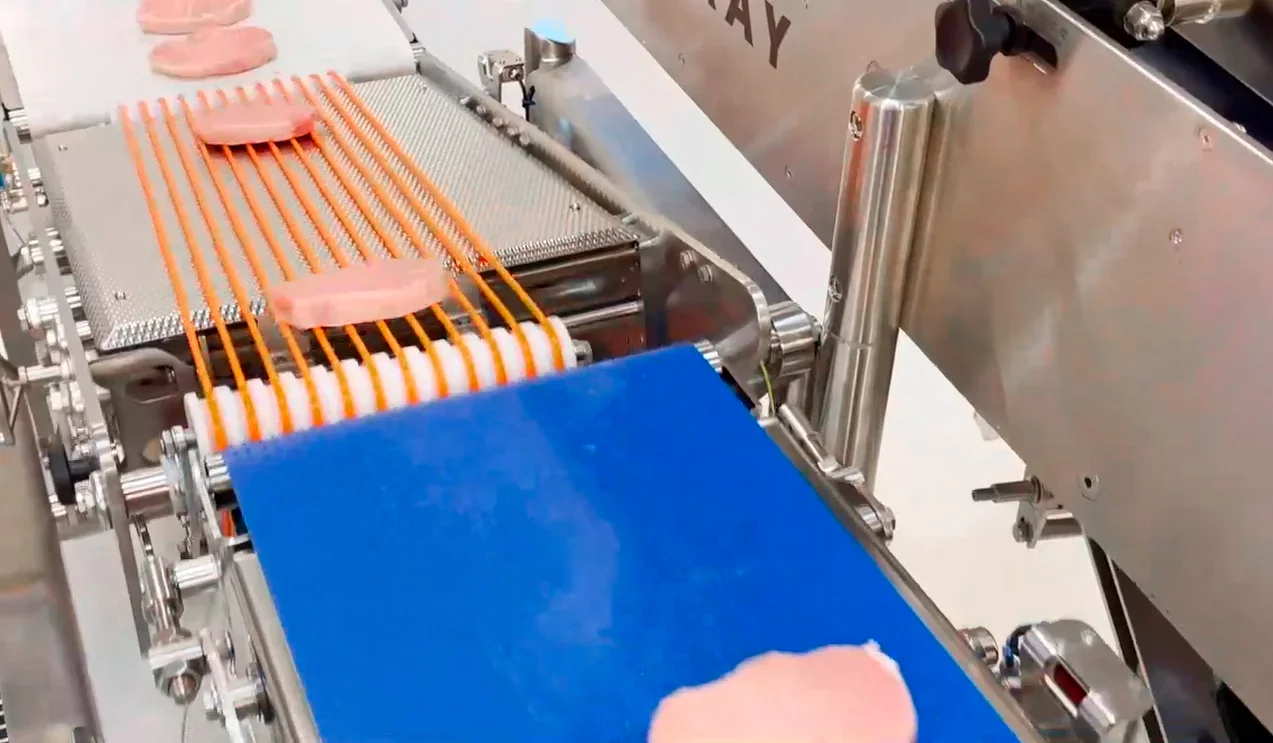

When the product continues, it must be aligned properly for packaging. Usually, this means rotating and/or positioning the product on the line, so all products have the same orientation when they enter the tray. The more precise this is, the fewer mistakes will occur later on, ensuring a high(er) uptime overall in the packing area. It also presents the product in the tray in a uniform way and lowers the complexity greatly on the Product Loader. The INTRAY SideFlex is an example of a machine for Product Alignment.

Next, you will find a tray denester. This separates nested trays from each other and outputs them on a separate line. Tray denesters come in many configurations depending on product type, capacity requirements, and of course, the type of tray you wish to use. Tray denesters can also have a buffer embedded, ensuring that the denesters can run for hours on end before they need to get more trays loaded. If the Food Manufacturer uses more than one type of tray, the denester should be able to adapt quickly on the same line. The INTRAY Smart Servo series tray denesters have the added benefit of an auto-correct feature if a tray error should occur.

From the product loader, the line continues with filled trays. The trays should now be buffered for the tray sealer down the line. As with a product buffer, a tray buffer ensures a higher output during possible downtime at other points on the line. A lot of manufacturers still don’t use tray buffers before their tray sealers, but we highly recommend doing this, as a tray sealer can be one of the slowest machines on the line, and you want it running as much as possible. Therefore, the ROI gain can be significant by implenting a tray buffer into your line.

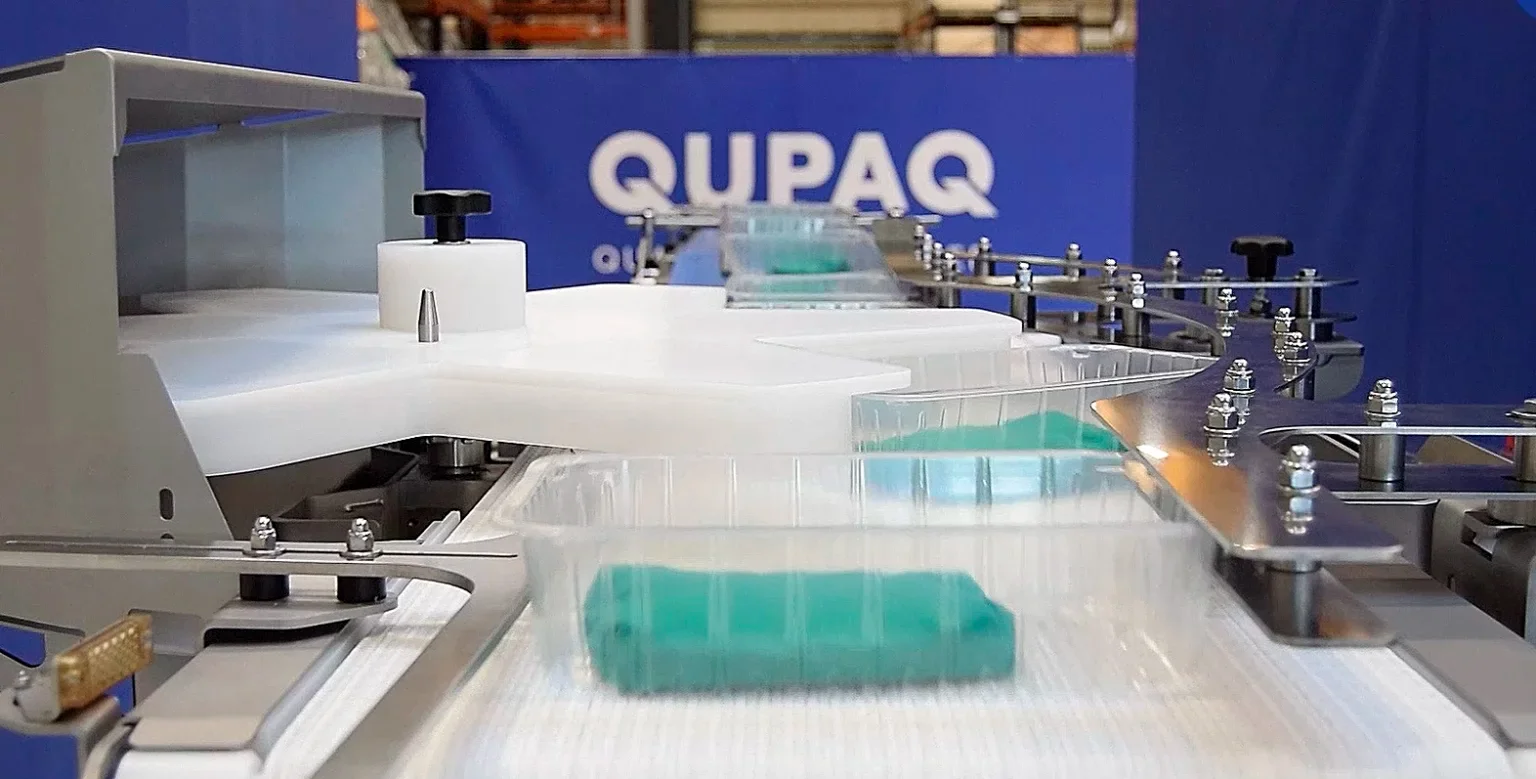

Before entering the tray sealer, trays must be aligned properly. In some cases, it is possible to diverge the trays, splitting the line from a single lane to a twin lane, optimizing the output significantly. For this purpose, QUPAQ makes the Starwheel, LeanOne Diverger and INTRAY Tray Turner.

Trays enter the tray sealer. QUPAQ does not make tray sealing solutions as there are already many good solutions for this from various vendors all around the world. Instead, we partner with the best and we are able to deliver a full operational line with high compatibility with our product range.

Overall, we recommend using as few different tech vendors as possible on a food production line. The more providers used, the more dialogue is needed, and ensuring that all of them comply with the many regulations that are in play is almost a project on its own. Even if there are many different subtasks and technologies mentioned here, most of them are not rocket science. Here, we suggest that you focus on the tray denester, product loader, and tray sealer, and then get the rest from the vendors of those. Hence, you ensure that compatibility is proven and a good sync lowering the complexity greatly resulting in project success.
